Studio layout planner
Plan a Pilates studio layout around the machine and the people using it.

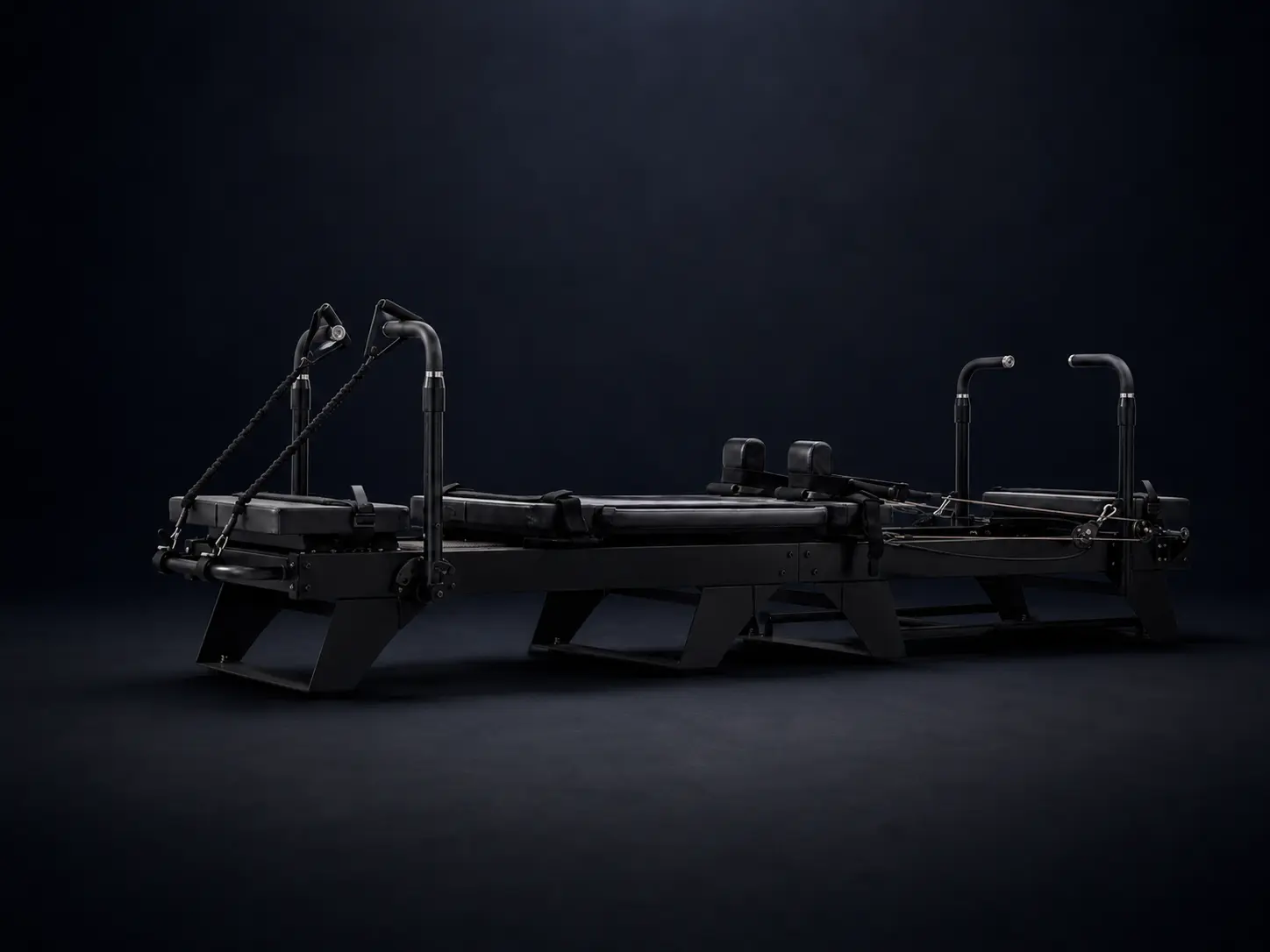

Carriage One measures 133 inches long by 36 inches wide. Use that exact footprint to model station count, instructor circulation, member entry, cleaning access, and the receiving path before committing the room or the order.
Important boundary
The machine footprint is not the finished room size.
Add instructor aisles, member movement, circulation, accessibility and egress routes, storage, cleaning access, and any clearance required by local code.
Direct answer
How much space does a commercial reformer need?
One Carriage One occupies about 33.25 square feet before clearances. Multiply that raw footprint by the proposed station count, then add the operational space the room needs. Do not use machine area alone as the room-size recommendation or code-compliant plan.
Interactive room planner
Place exact Carriage One footprints inside your room.
Enter the room, station count, and spacing assumptions to produce a proportional equipment diagram. Print the result for a contractor or quote conversation, then have a qualified local professional validate the final plan.
Carriage One room planner
Model the exact footprint inside your room.
Room measurements are in feet. Spacing assumptions are in inches and remain under your control.
12 stations fit this model.Modeled footprint capacity: 12. This is not a safety, accessibility, occupancy, or code approval.
30 x 55 ft room
1
2
3
4
5
6
7
8
9
10
11
12
Dark rectangles show the exact 133 x 36 inch machine footprint. The dashed line shows the selected perimeter only.
Planning model only. User-entered spacing is not a recommendation. The diagram excludes columns, doors, mirrors, member movement envelopes, instructor activity, accessibility, egress, fire and occupancy rules, storage, utilities, receiving, and local code. A qualified local professional must approve the final room plan.
Station-count math
Separate machine area from total room area.
These figures multiply the exact 133 by 36 inch machine footprint. They intentionally exclude every clearance and support area so buyers do not mistake a product dimension for a finished floor plan.
| Station plan | Raw machine footprint | Carriage One subtotal | Still add |
|---|---|---|---|
| 8 stations | 266 sq ft | $39,600 | Aisles, access, storage, service space, and local requirements |
| 12 stations | 399 sq ft | $59,400 | Aisles, access, storage, service space, and local requirements |
| 16 stations | 532 sq ft | $79,200 | Aisles, access, storage, service space, and local requirements |
Room-planning checklist
Six checks before the station count is final.
A denser room is not automatically a better room. The strongest plan protects class flow, delivery, maintenance, and member confidence while supporting the business model.
Use the 133 by 36 inch Carriage One footprint, then add the working and circulation clearances required by the room and local rules.
The instructor needs a repeatable route to cue, correct, change springs, and reach every station without stepping through active movement.
Measure doors, corridors, elevators, stairs, turns, loading access, and the final route from delivery point to the studio floor.
The final count should leave enough room to clean tracks and upholstery, inspect wear points, and move around a machine that needs attention.
Place rows so members can orient themselves and instructors can see carriage travel, platform work, and transitions across the room.
Accessibility, egress, occupancy, and fire requirements vary. A local qualified professional must approve the final plan.
Room economics
Test the station count against the schedule.
A layout decision is also a capacity decision. Use the model to compare equipment subtotal, available seats, and gross class revenue under your own assumptions.
Machine price only, before freight, tax, delivery, finish work, or buildout.
1,872 seats are available at the selected schedule.
This is gross revenue before every operating expense.
About 1,980 paid seats at the selected price.
Planning model only. This is not a profit forecast or financing offer. It excludes payroll, rent, payment processing, marketing, insurance, taxes, refunds, freight, delivery, buildout, maintenance, downtime, and local demand.
Bring the dimensions to the quote.
Share the room dimensions, intended station count, mirror wall, receiving path, and opening window so the equipment conversation starts with the actual project.
Start a Room-Level QuoteModel the full studio cost.
Continue from machine footprint into equipment subtotal, freight, delivery, buildout, payroll, and schedule assumptions.
Open the Studio Cost GuidePilates studio layout questions.
How much floor space does one Carriage One machine occupy?
Carriage One measures 133 inches long by 36 inches wide, so the machine itself occupies about 33.25 square feet. That number excludes member movement envelopes, instructor aisles, walls, mirrors, storage, accessibility routes, and local code requirements.
How many reformers should a new studio put in one room?
Start with the room dimensions, safe circulation, instructor sightlines, demand, class price, and opening budget. An eight-, twelve-, or sixteen-station plan can work, but the correct count is the highest count that preserves safe movement and a workable operating model.
What should a Pilates studio layout plan include?
A useful layout plan includes each machine's full footprint, moving-carriage clearance, instructor paths, member entry and exit, mirror sightlines, emergency and accessibility routes, cleaning access, storage, electrical needs, and the receiving path from the building entrance.
Does The Carriage Co. provide a final architectural plan?
No. The Carriage Co. provides equipment dimensions and room-planning guidance for the purchase decision. A qualified local architect, contractor, accessibility professional, or code official should confirm the final layout and required clearances.
